K531 - 1"

K531 Series Valves – AquaMatic / AqMatic – Common Configurations
Part Number Model Number Valve options Diaphragm/Seal/Disk NO NC SAO SAC LS PI
1″ VALVES
1070304 K531-X200-14000 Normally Open EP / Buna / EP (RAE) x
1071282 K531-X201-14000 Normally Open, SAO EP / Buna / EP (RAE) x   x
1071286 K531-X202-14000 Normally Open, SAC EP / Buna / EP (RAE) x     x

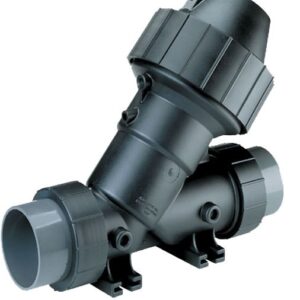

1070305 K531-X210-14000 Normally Open, LS Buna-N / EPDM x       x

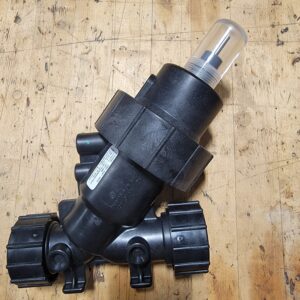

1071268 K531-X2A1-14000 Normally Open, LS, PI, SAO Buna-N / EPDM x   x   x x
1071280 K531-X200-54000 Normally Open FKM / Buna / FKM (RAVFB) x
1071281 K531-X200-64000 Normally Open Butyl / Buna / Butyl (RAJ) x
1″ FAILSAFE CLOSE VALVES
1079700 K531-X203-14000 30 psi Failsafe Close Buna-N / EPDM       x
1071291 K531-X204-14000 60 psi Failsafe Close Buna-N / EPDM         x
1071294 K531-X205-14000 100 psi Failsafe Close Buna-N / EPDM           x
3000565 K531-X203-54000 30 psi Failsafe Close Buna-N / FKM       x
1076626 K531-X204-54000 60 psi Failsafe Close Buna-N / FKM         x
1071296 K531-X205-54000 100 psi Failsafe Close Buna-N / FKM           x
1076627 K531-X204-64000 60 psi Failsafe Close Buna-N / Butyl         x
1071297 K531-X205-64000 100 psi Failsafe Close Buna-N / Butyl           x
Approximate Ship Weight 3 Lbs
