K534 - 1.5"

K534 Series Valves – AquaMatic / AqMatic – Common Configurations
Part Number Model Number Valve options Diaphragm/Seal/Disk NO NC SAO SAC LS PI
1 1/2″ VALVES
1070308 K534-X200-14000 Normally Open Buna-N / EPDM x
1071329 K534-X201-14000 Normally Open, SAO Buna-N / EPDM x   x
1071332 K534-X202-14000 Normally Open, SAC Buna-N / EPDM x     x
1070309 K534-X210-14000 Normally Open, LS Buna-N / EPDM x       x

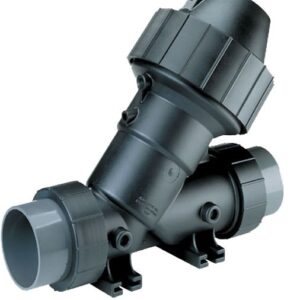

1071313 K534-X2A1-14000 Normally  Open, LS, PI, SAO Buna-N / EPDM x   x   x x
1071328 K534-X200-54000 Normally Open Buna-N / FKM x
1076641 K534-X200-64000 Normally Open Buna-N / Butyl x
Approximate Ship Weight 5 Lbs
1 1/2″ FAILSAFE VALVES
1079718 K534-X203-14000 30 psi Failsafe Close Buna-N / EPDM x     x
1071334 K534-X204-14000 60 psi Failsafe Close Buna-N / EPDM x       x
1071335 K534-X205-14000 100 psi Failsafe Close Buna-N / EPDM x         x
3031381 K534-X203-54000 30 psi Failsafe Close Buna-N / FKM x     x
1079719 K534-X204-54000 60 psi Failsafe Close Buna-N / FKM x       x
1076645 K534-X205-54000 100 psi Failsafe Close Buna-N / FKM x         x
4500254 K534-X203-64000 30 psi Failsafe Close Buna-N / Butyl x     x
1071338 K534-X205-64000 100 psi Failsafe Close Buna-N / Butyl x         x
Approximate Ship Weight 10 Lbs
