V42 J - 3"

AquaMatic / AqMatic Valve V42 J

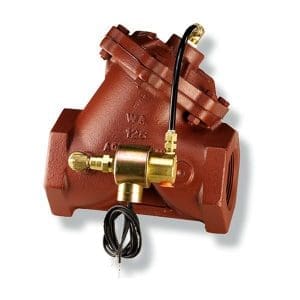

3″ Y Pattern AquaMatic V42J Diaphragm Valve
Cast Iron or Cast Brass Body and Cap

AquaMatic products are manufactured in the United States of foreign and domestic parts.

AquaMatic V42J Features & Benefits

  • Large seat opening and high lift-disc for higher flow rates at a lower pressure loss
  • Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
  • Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
  • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
  • Constructed of cast iron, brass, stainless steel and Nitrile elastomer components, giving an unparalleled service life
  • ¾-inch through 3-inch threaded (N.P.T. or B.S.P.); 3-inch through 6-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504
  • Compatible with wide range of line fluids including air or water applications
  • Reinforced diaphragms are pre-formed and stress relieved to maximize responsiveness and product life
  • Can be actuated with either air or water as control fluid

V42 Series Valves – AquaMatic / AqMatic – Common Configurations
Part Number Model Number Valve options Diaphragm/Seal NO NC SAO SAC LS PI
3″ NPT VALVES
1070043 V42J-0000-00000 Normally Open Buna-N / Buna-N x
1073055 V42J-0030-00000 Normally Closed Buna-N / Buna-N   x
1073047 V42J-0002-00000 Normally Open, SAC Buna-N / Buna-N x     x
1073045 V42J-0001-00000 Normally Open, SAO Buna-N / Buna-N x   x
1073052 V42J-0010-00000 Normally Open, LS Buna-N / Buna-N x       x
1077350 V42J-0040-00000 Normally Closed, LS Buna-N / Buna-N   x     x
1073058 V42J-0032-00000 Normally Closed, SAC Buna-N / Buna-N   x   x
1073054 V42J-0021-00000 Normally Open, PI, SAO Buna-N / Buna-N x   x     x

1073041 V42J-0000-20000 Normally Open FKM / FKM x
1073059 V42J-0032-20000 Normally Closed, SAC FKM / FKM   x   x
3029784 V42J-0001-20000 Normally Open, SAO FKM / FKM x   x
Approximate Ship Weight 30 Lbs

3″ ASTM FLANGE VALVES
1070044 V42J-3000-00000 Normally Open Buna-N / Buna-N x
1073113 V42J-3030-00000 Normally Closed Buna-N / Buna-N   x
1073100 V42J-3002-00000 Normally Open, SAC Buna-N / Buna-N x     x
1073097 V42J-3001-00000 Normally Open, SAO Buna-N / Buna-N x   x
1073103 V42J-3010-00000 Normally Open, LS Buna-N / Buna-N x       x
1073117 V42J-3040-00000 Normally Closed, LS Buna-N / Buna-N   x     x
1073115 V42J-3032-00000 Normally Closed, SAC Buna-N / Buna-N   x   x
1077374 V42J-3021-00000 Normally Open, PI, SAO Buna-N / Buna-N x   x     x

1073096 V42J-3000-20000 Normally Open FKM / FKM x
1073116 V42J-3032-20000 Normally Closed, SAC FKM / FKM   x   x
1077371 V42J-3001-20000 Normally Open, SAO FKM / FKM x   x
Approximate Ship Weight 43 Lbs
