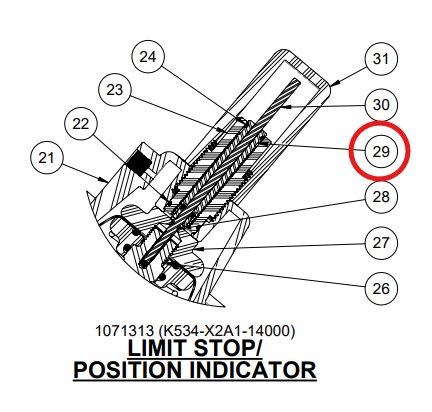

The V534-700 Guide Assembly Limit Stop Screw is a precision component used in AqMatic 534 diaphragm valve assemblies equipped with a limit stop or position indicator configuration. This guide assembly works with the limit stop screw to control valve travel and help maintain accurate positioning during operation. By stabilizing the adjustment mechanism, it supports consistent valve movement and reliable system performance in filtration, softening, and industrial fluid control applications.
Within the valve assembly, the guide assembly ensures the limit stop screw operates smoothly and maintains proper alignment with the associated guide and cap components. This helps regulate how far the valve can open or close, preventing excessive travel that could affect system performance or internal components. Designed specifically for AqMatic 534 series valves, the V534-700 assembly is commonly used during maintenance, repairs, and valve rebuilds where restoring accurate valve travel control is essential.
$40.27
Key Features & Benefits
Designed for 534 Valve Assemblies: Engineered specifically for AqMatic 534 series diaphragm valves to ensure proper compatibility and fit.
Integrated Limit Stop Assembly: Works with the limit stop system to control valve travel and maintain consistent operating limits.
Supports Accurate Valve Positioning: Helps maintain stable alignment of adjustment components during valve operation.
Durable Internal Valve Component: Built to withstand repeated cycling in water treatment and industrial fluid control systems.
Ideal for Maintenance and Rebuilds: Direct replacement assembly used to restore reliable limit stop functionality in valve systems.
| SKU | Model Number | Part/Kit |
|---|---|---|
| 1081128 | V534-700 | Guide Assembly, Limit Stop Screw |
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
