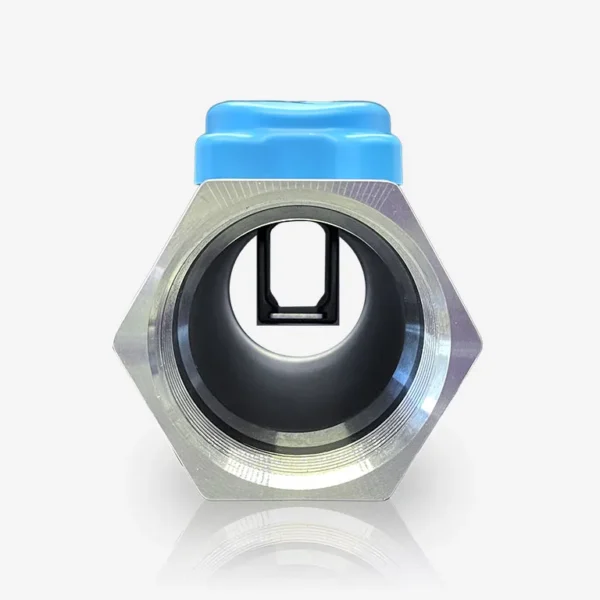

The F Series inline flow meters are engineered to elevate water treatment and usage measurement. Stainless steel construction and no internal moving parts ensure durability and reliability even in the most demanding environments.
When connected to commonly used industry controls, the F Series meter module operates as a pulse generating device with a corresponding “K Factor” for accurate flow measurement.
$620.07
Model: F315
Pipe Size: 2.0″
Low Flow Threshold: .45 gpm (1.7 Lpm)
Typical Flow (0.1 ft/sec to 10 ft/sec): 1.0 – 98.0 gpm (3.8 – 371 Lpm)
Max Flow (16ft/sec): 156 gpm (590 Lpm)
K Factor (Pulses/Gal): 20 (5.28/Liter)
| Weight | 3 lbs |
|---|---|
| Dimensions | 12 × 8 × 6 in |
| Seals | NPT, BSP |
