AqMatic 1-12 Special Valve V42E-00SX-11335 IP Solenoid Valve Assembly

AquaMatic V42E-00SX-11335 – 1 1/2 Inch Special Valve – IP Solenoid – BUNA/EP/EP

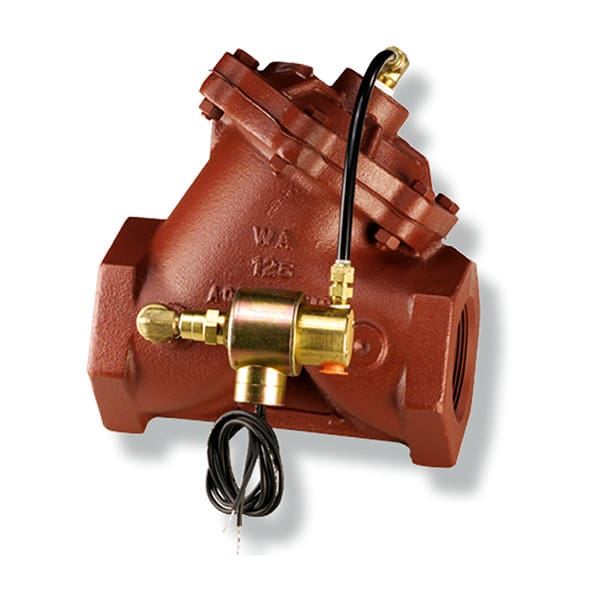

The AqMatic V42E-00SX-11335 is a 1-1/2 inch cast iron diaphragm valve with a special configuration and independent pressure (IP) solenoid, designed for systems requiring customized pilot control and non-standard internal setups.

This model is part of the V42 series, a metal-body diaphragm valve platform used in water treatment, filtration, and industrial flow control systems. The V42 design uses a Y-pattern body that supports higher flow rates with lower pressure loss while maintaining reliable shutoff.

The 00SX designation indicates a special-order configuration, including drilled and tapped bosses and modified internal components for integration into systems with specific control requirements or legacy layouts.

This valve features an independent pressure (IP) solenoid, which operates using an external pressure source rather than relying solely on line pressure. This makes it suitable for systems where pressure conditions vary or where more controlled pilot actuation is required.

The valve is built with a Buna diaphragm and EP seals and discs, supporting compatibility across water treatment and filtration applications. It is commonly deployed in automated systems using stagers and stager controls, or alongside other V42 diaphragm valves in multi-valve assemblies.

$453.01

Expedite (5 Days to ship)

Only choose this option if you have talked to an agent who said it is available.

Product price: $453.01
Total options:
Order total:

Description

Model Number SKU
V42E-00SX-11335 1072750
Pipe Size Connectors
1 1/2 Inch Female N.P.T
Configuration Diaphragm, Seals & Disc
Special Valve BUNA N Diaphragm and EP Seals & Discs
Internal Parts Bosses Drilled & Tapped
Special Order Boss #3
Solenoid / Float? Solenoid & Float Options
Solenoid Valve Independent Pressure (IP)
Solenoid Features Float Features
Special Solenoid Configuration

Key Features & Benefits

  • 1-1/2 inch V42 cast iron diaphragm valve for high-flow water and filtration systems
  • 00SX special configuration supports custom porting, drilled bosses, and non-standard system integration
  • Independent pressure (IP) solenoid allows controlled actuation using external pressure sources
  • Buna diaphragm with EP seals and discs for compatibility in water treatment and filtration environments
  • Y-pattern valve body design supports higher flow rates with lower pressure drop
  • Separate control and flow chambers improve sealing reliability and protect internal components
  • Suitable for filtration, softening, and industrial fluid control applications requiring custom valve behavior
  • Can be integrated with stagers and stager controls for automated operation

Additional information

Weight 7.5 lbs
Dimensions 9 × 7 × 5 in
