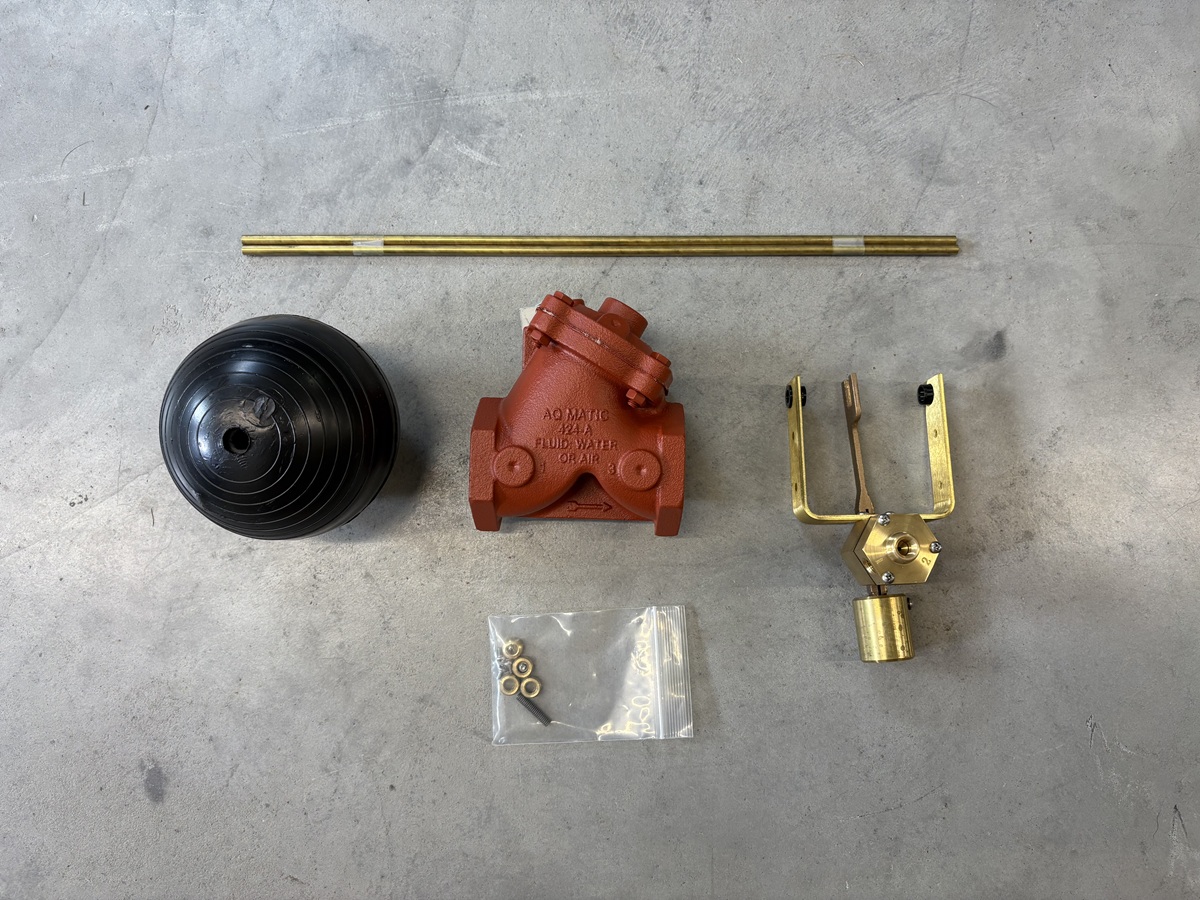

AquaMatic V42E-0000-000A0 – 1 1/2 Inch Normally Open – Float Valve – BUNA N

The AquaMatic V42E-0000-000A0 is a heavy-duty 1½-inch normally open float valve engineered for reliable automatic fluid level control in industrial and process systems. In its default state, the valve allows full flow; as the liquid level rises, the float mechanism triggers a shutoff to prevent overflow and maintain system stability.

Built with Buna-N (nitrile) elastomers for the diaphragm, seals, and disc, this valve provides excellent chemical and oil resistance. Its internal parts are precision-machined with drilled and tapped bosses to minimize leakage and ensure consistent performance. The design includes a 36″ brass float rod for accurate level sensing and responsive actuation.

Key Features:
• 1½″ female NPT ports
• Normally open configuration with auto-shutoff
• Buna-N elastomeric diaphragm, seals & disc
• Precision-machined internals for leak-free performance
• 36″ brass float rod for level detection

$1,216.08

Expedite (3 Days to ship)

Only choose this option if you have talked to an agent who said it is available.

Product price: $1,216.08
Total options:
Order total:

Description

Model Number SKU
V42E-0000-000A0 1072763
Pipe Size Connectors
1 1/2 Inch Female N.P.T
Configuration Diaphragm, Seals & Disc
Normally Open BUNA N Diaphragm, Seals & Discs
Internal Parts Bosses Drilled & Tapped
Brass & Stainless Steel None
Solenoid / Float? Solenoid & Float Options
Float Valve 3000 Float, Closed if High, Closed by Pilot Pressure, Open by Vent
Solenoid Features Float Features
36 Inch Brass Float Rod

Additional information

Weight 10 lbs
Dimensions 9 × 7 × 5 in
