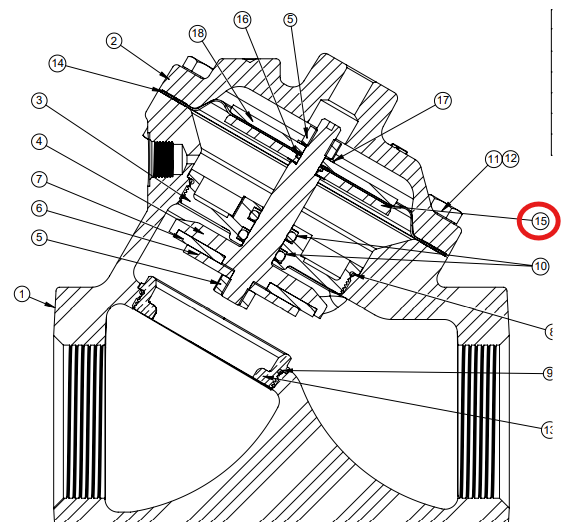

The 425-DAA Diaphragm Plate AV5 Lower SS is a precision internal component designed for AqMatic AV5 and 425 series diaphragm valve assemblies. Manufactured from stainless steel, this lower diaphragm plate provides the structural support required to stabilize the diaphragm during valve operation. Its rigid construction helps maintain proper diaphragm positioning and consistent movement as the valve cycles between open and closed states.
Inside the valve assembly, the lower diaphragm plate works together with the diaphragm and upper plate to distribute pressure evenly and maintain alignment during operation. Proper support from the lower plate is essential for maintaining reliable sealing and smooth valve movement in water treatment and industrial fluid control systems. Designed specifically for AqMatic 425 valve configurations, the 425-DAA diaphragm plate is commonly used during valve maintenance, rebuilds, and system upgrades where restoring dependable performance is essential.
$78.68
Key Features & Benefits
Stainless Steel Construction: Provides durability and corrosion resistance in demanding water treatment and industrial environments.
Designed for AV5 / 425 Valve Assemblies: Precision component engineered specifically for AqMatic diaphragm valve systems.
Lower Diaphragm Plate Configuration: Supports the diaphragm from below to maintain correct alignment during valve cycling.
Supports Reliable Valve Performance: Helps distribute pressure evenly and maintain stable diaphragm movement.
Ideal for Maintenance and Rebuilds: Direct replacement part used to restore dependable valve function in existing systems.
| SKU | Model Number | Part/Kit |
|---|---|---|
| 1074295 | 425-DAA | Diaphragm Plate, AV5, Lower, SS |
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
