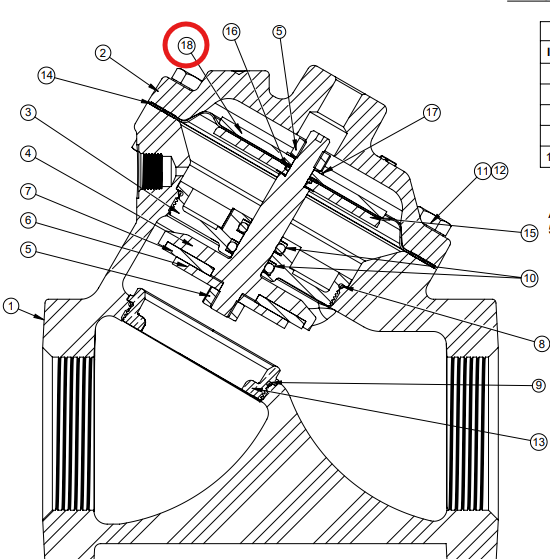

The 425-DA Diaphragm Plate AV5 SS Upper is a precision internal valve component designed for AqMatic AV5 and related 425 series diaphragm valve assemblies. Manufactured from stainless steel, this upper diaphragm plate provides the structural support required to stabilize the diaphragm during valve operation. Its rigid construction helps maintain correct positioning of the diaphragm as the valve cycles between open and closed states, ensuring reliable flow control in demanding water treatment and industrial fluid systems.
Inside the valve assembly, the diaphragm plate works with the diaphragm and related internal components to distribute pressure evenly and maintain alignment during operation. Proper plate alignment is essential for maintaining consistent sealing and smooth valve movement. Designed specifically for AqMatic 425 valve configurations, the 425-DA diaphragm plate is commonly used in maintenance, valve rebuilds, and system upgrades where restoring dependable valve performance is essential.
$77.18
Key Features & Benefits
Stainless Steel Construction: Provides durability and corrosion resistance in water treatment and industrial environments.
Designed for AV5 / 425 Valve Assemblies: Precision component engineered specifically for AqMatic diaphragm valve systems.
Upper Diaphragm Plate Configuration: Supports correct positioning and stability of the diaphragm during valve cycling.
Improves Valve Reliability: Helps maintain proper alignment and consistent sealing performance during operation.
Ideal for Maintenance and Rebuilds: Direct replacement component used to restore reliable valve function in existing systems.
| SKU | Model Number | Part/Kit |
|---|---|---|
| 1074294 | 425-DA | Diaphragm Plate, AV5, SS, Upper |
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
