V42 C - 1" - Solenoid

AquaMatic / AqMatic Valve V42 C

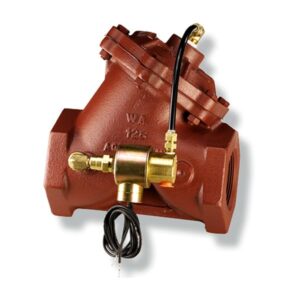

1″ Y Pattern AquaMatic V42C Diaphragm Valve with Solenoid
Cast Iron or Cast Brass Body and Cap

AquaMatic products are manufactured in the United States of foreign and domestic parts.

AquaMatic V42C Features & Benefits

  • Large seat opening and high lift-disc for higher flow rates at a lower pressure loss
  • Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
  • Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
  • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
  • Constructed of cast iron, brass, stainless steel and Nitrile elastomer components, giving an unparalleled service life
  • ¾-inch through 3-inch threaded (N.P.T. or B.S.P.); 3-inch through 6-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504
  • Compatible with wide range of line fluids including air or water applications
  • Reinforced diaphragms are pre-formed and stress relieved to maximize responsiveness and product life
  • Can be actuated with either air or water as control fluid

V42 Series Solenoid Valves – AquaMatic / AqMatic – Common Configurations
SKU Model Number Diaphragm / Seal&Disc NO SAO SAC LS PI EO EC IP DD Voltage
1072609 V42C-0000-00011 Buna N / Buna N X X 115V/60H
1072610 V42C-0000-00012 Buna N / Buna N X X 220V/50H
1072611 V42C-0000-00013 Buna N / Buna N X X 24V/60H
1077160 V42C-0000-00014 Buna N / Buna N X X 115V/60H
4500555 V42C-0000-0001A Buna N / Buna N X X 24V/60H
1072612 V42C-0000-00021 Buna N / Buna N X X 115V/60H
1239646 V42C-0000-00023 Buna N / Buna N X X 24V/60H
3014127 V42C-0000-00024 Buna N / Buna N X X 115V/60H
1236536 V42C-0000-00031 Buna N / Buna N X X 115V/60H
1234971 V42C-0000-00041 Buna N / Buna N X X X 115V/60H
4500227 V42C-0000-0005A Buna N / Buna N X X X 24V/60H
4500385 V42C-0000-20024 FKM / FKM X X 115V/60H
1077171 V42C-0001-00011 Buna N / Buna N X X X 115V/60H
1084364 V42C-0001-00021 Buna N / Buna N X X X 115V/60H
4500380 V42C-0001-00023 Buna N / Buna N X X X 24V/60H
1072633 V42C-0002-00011 Buna N / Buna N X X X 115V/60H
1072634 V42C-0002-00021 Buna N / Buna N X X X 115V/60H
3038417 V42C-0002-00214 Buna N / Buna N X X X 115V/60H
1234895 V42C-0010-00041 Buna N / Buna N X X X X 115V/60H
3037779 V42C-0021-00024 Buna N / Buna N X X X X 115V/60H
Approximate Ship Weight 4 Lbs
