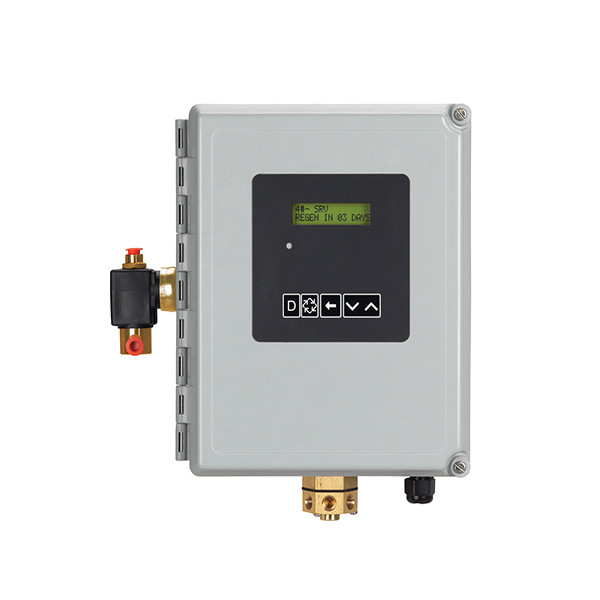

The AqMatic NXT Stager Controller NX48-SS0T-10246 (Part #4510246) is a microprocessor-based stager control system designed to manage the sequential operation of diaphragm valves in water treatment and industrial fluid handling systems. Built on the NX48 platform with an integrated 48 series 6-port stager, this controller provides precise and repeatable control of valve cycling in filtration, softening, and backwash applications.
At the core of the system, the NXT controller uses programmable logic to direct the stager’s rotary operation, pressurizing and venting control ports to open and close valves in a defined sequence. The controller features a backlit display, intuitive interface, and diagnostic feedback, allowing operators to monitor system performance and adjust operation as needed. NXT controllers are designed to fine tune stager operation across a wide range of applications while maintaining consistent system performance.
This configuration includes a custom program setup with normally closed operation, integrated transformer, and service return (homing) functionality to automatically synchronize the controller and stager to a known position. The unit is supplied without a communication cable and without a second auxiliary switch, making it suitable for applications requiring a streamlined control configuration.
$2,661.04
AQ-MATIC 4510246 MODEL # NX48-SS0T-10246 NXT STAGER CONTROL, 48CSTM, N/C
CUSTOM PROGRAM , LESS COMM CABLE, WITH TRANSFORMER, SERVICE RETURN, NO 2ND AUX. SWITCH
NX48 Microprocessor Controller: Provides programmable control over valve sequencing for precise and repeatable system operation.
Integrated 48 Series 6-Port Stager: Controls multiple diaphragm valves through coordinated rotary pilot operation.
Sequential Valve Control: Automates valve cycling by directing control pressure to open and close valves in a defined sequence.
Custom Program Configuration: Tailors system operation to specific application requirements.
Normally Closed Configuration: Supports applications requiring default closed valve positioning.
Service Return (Homing) Function: Automatically synchronizes control and stager to a known position for consistent operation.
Backlit Display with Diagnostics: Provides system status and performance feedback for monitoring and troubleshooting.
Integrated Transformer: Supports stable electrical operation and simplified installation.
Simplified Configuration: Supplied without communication cable and without second auxiliary switch for streamlined system integration.
| Weight | 15 lbs |
|---|---|
| Dimensions | 20 × 16 × 16 in |
