NXT STAGER CONTROLLER, NX48-001T-SC0SB

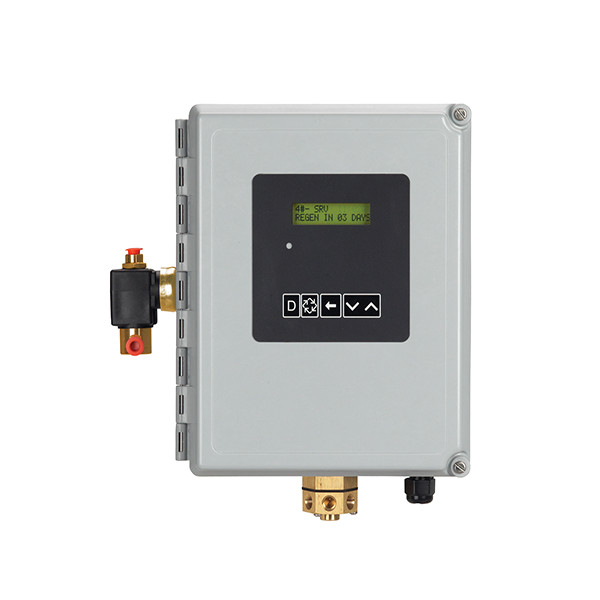

The AqMatic NXT Stager Controller NX48-001T-SC0SB is a microprocessor-based stager control system designed to manage the sequential operation of diaphragm valves in water treatment and industrial fluid handling systems. Built on the NX48 platform with an integrated 48 series 6-port stager, this controller provides precise and repeatable control of valve cycling in filtration, softening, and backwash applications.

At the core of the system, the NXT controller uses programmable logic to direct the stager’s rotary operation, pressurizing and venting control ports to open and close valves in a defined sequence. The controller features a backlit display, intuitive interface, and diagnostic feedback, allowing operators to monitor system performance, track flow data, and adjust regeneration cycles as needed. The platform is designed to fine tune stager operation across a wide range of system configurations, improving overall control and reliability.

The integrated 48 series stager functions as a motor-driven rotary multiport pilot valve, coordinating valve actuation across multiple tanks or process steps. The controller supports multiple regeneration modes, including time-based and meter-based operation, and can be configured to match system requirements. Designed for flexibility and long-term performance, the NX48-001T-SC0SB is commonly used in systems requiring consistent sequencing and dependable valve control.
