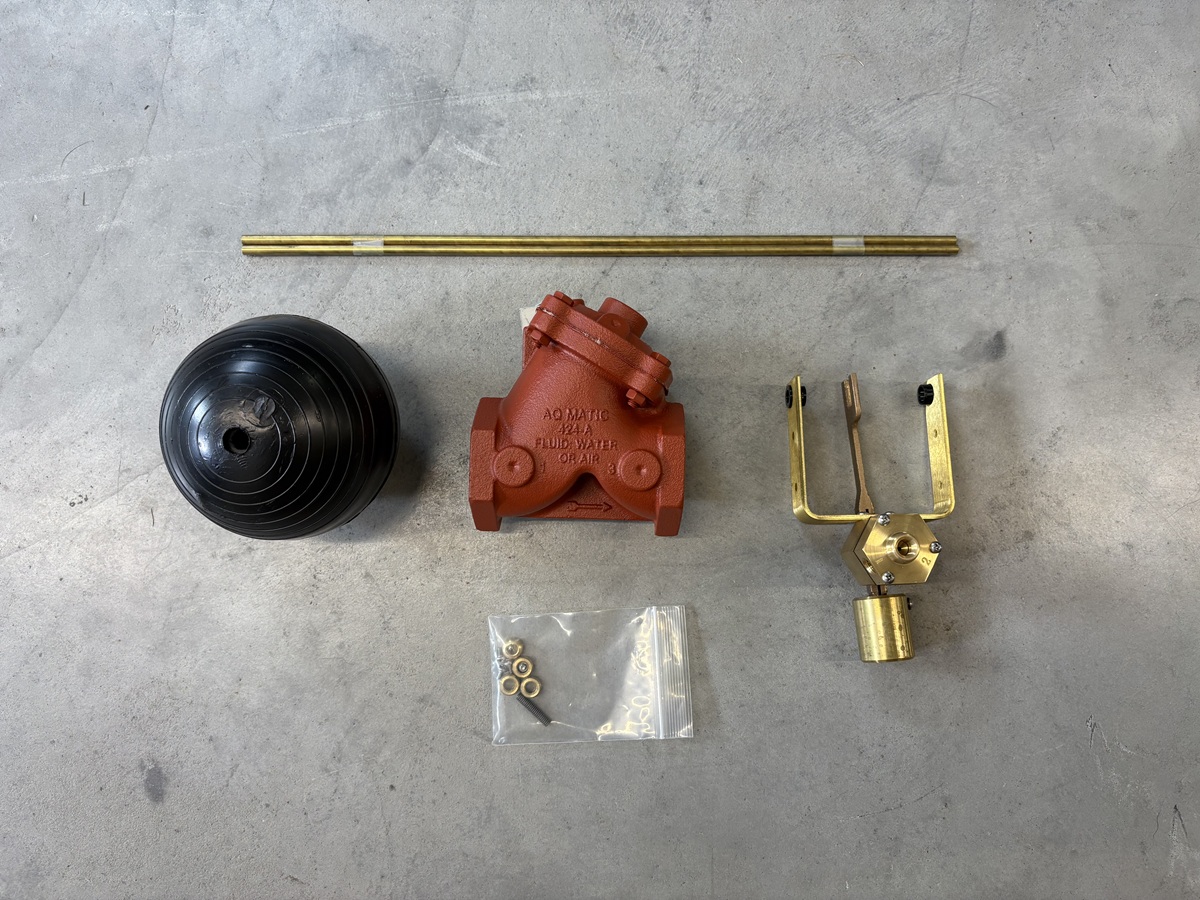

AquaMatic V42E-0000-000BN – 1 1.2 Inch Normally Open – Float Valve – BUNA N

AquaMatic V42E-0000-000BN – 1 1/2 Inch Normally Open – Float Valve – BUNA N

The AquaMatic V42E-0000-000BN is a robust 1½-inch normally open float valve engineered for automatic liquid-level control in industrial, water systems, and process applications. In its normal (default) position, the valve remains open to permit flow. When the liquid rises, the float mechanism actuates a shut-off to protect against overflow and maintain system balance.

Constructed with Buna-N (nitrile) elastomers — including the diaphragm, seals, and valve disc — this unit resists oils, fuels, and many common process fluids. Its internal components are precision-machined with drilled and tapped bosses to reduce leakage and enhance reliability. A 36″ brass float rod enables responsive and precise level sensing.

Key Features:

  • 1½″ female NPT ports

  • Normally open design with automatic shut-off

  • Buna-N diaphragm, seals & disc

  • Precision-machined interior for leak resistance

  • 36″ brass float rod for accurate level control

$1,262.23

Expedite (3 Days to ship)

Only choose this option if you have talked to an agent who said it is available.

Product price: $1,262.23
Total options:
Order total:

Description

Model Number SKU
V42E-0000-000BN 1072764
Pipe Size Connectors
1 1/2 Inch Female N.P.T
Configuration Diaphragm, Seals & Disc
Normally Open BUNA N Diaphragm, Seals & Discs
Internal Parts Bosses Drilled & Tapped
Brass & Stainless Steel None
Solenoid / Float? Solenoid & Float Options
Float Valve 3010 Float, Closed if High, Closed and Open by Pilot Pressure
Solenoid Features Float Features
54 Inch Brass Float Rod

Additional information

Weight 7.5 lbs
Dimensions 9 × 7 × 5 in
