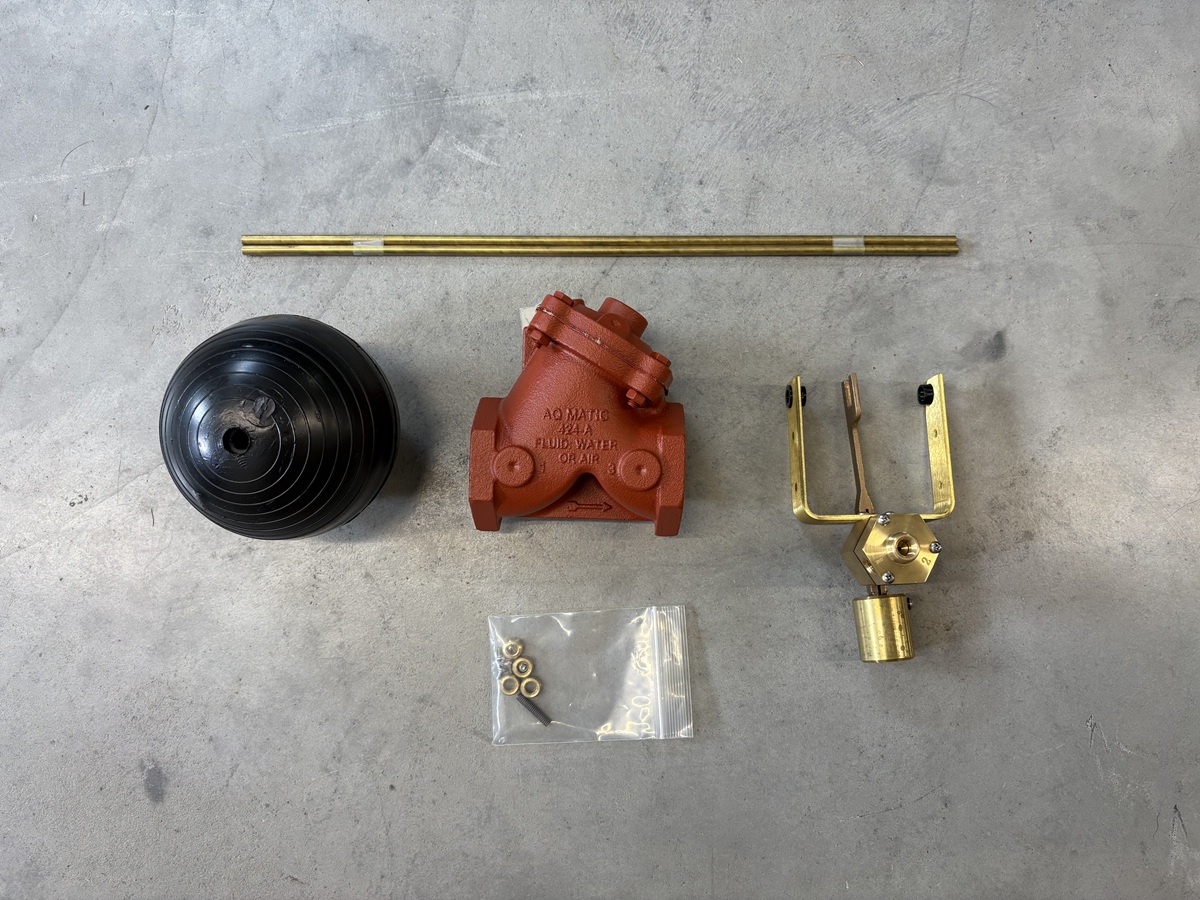

The AquaMatic V42D-0000-000AN is a robust 1¼-inch normally open float valve engineered for automatic fluid-level control in industrial and process systems. Its default open position allows full flow, then closes automatically as fluid levels rise to guard against overflow and maintain stable operations.
Crafted with Buna-N (Nitrile) seals and diaphragm, this valve delivers excellent resistance to oils, fuels, and aqueous fluids. Its durable, corrosion-resistant build and reliable float mechanism make it well suited for water treatment, storage tanks, chemical processing, and other level-control applications.
Key Features:
• 1¼″ NPT ports
• Normally open operation
• Buna-N elastomeric diaphragm and seals
• Rugged and maintainable design
$1,137.67
| Model Number | SKU |
|---|---|
| V42D-0000-000AN | 1080865 |
| Pipe Size | Connectors |
| 1 1/4 Inch | Female N.P.T |
| Configuration | Diaphragm, Seals & Disc |
| Normally Open | BUNA N Diaphragm, Seals & Discs |
| Internal Parts | Bosses Drilled & Tapped |
| Brass & Stainless Steel | None |
| Solenoid / Float? | Solenoid & Float Options |
| Float Valve | 3000 Float, Closed if High, Closed by Pilot Pressure, Open by Vent |
| Solenoid Features | Float Features |
| 54 Inch Brass Float Rod |
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 9 × 7 × 5 in |
