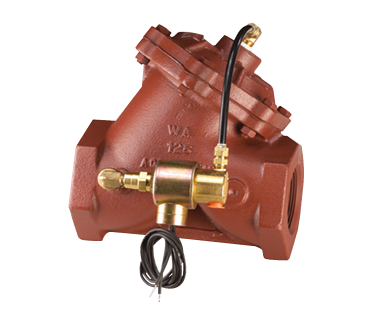

The AQ Matic 4510149 (V42J-0000-00041) is a 3-inch diaphragm-operated control valve designed for high-flow water and industrial fluid systems. Built on the V42 Y-pattern platform, this valve is configured with NPT connections, cast iron construction, and solenoid actuation (EO, dry configuration, 115V/60Hz) for controlled valve operation within automated systems.
V42 series valves are commonly used where maintaining flow rate with minimal pressure loss is critical. The Y-pattern body design increases flow capacity while reducing restriction, allowing the valve to cycle reliably without introducing unnecessary system resistance.
This configuration is typically installed in filtration systems, water treatment processes, and automated valve assemblies, where diaphragm valves are expected to open and close consistently under changing pressure conditions. The separation between control and flow chambers allows the valve to close positively without relying on springs, improving reliability across repeated cycles.
$1,370.00
| PART# 4510149 | MODEL# V42J-0000-00041 | V427,3.00,NPT,CI,EO,DRY,115/6 |
3-Inch High Flow Y-Pattern Design:
Provides increased flow capacity with lower pressure loss compared to standard straight-through valve bodies.
Solenoid Actuated (115V/60Hz, EO – Dry):
Supports automated control systems with energize-to-open functionality and dry configuration for controlled discharge.
Cast Iron Body Construction:
Delivers structural durability for water treatment and industrial applications where mechanical strength is required.
Separate Control and Flow Chambers:
Enables positive valve closure without springs, improving reliability and reducing mechanical wear.
Diaphragm-Operated Control:
Allows smooth valve actuation and consistent performance under variable pressure conditions.
Serviceable Internal Design:
All internal components can be maintained or replaced without removing the valve from the line, reducing downtime.
| Weight | 45 lbs |
|---|
