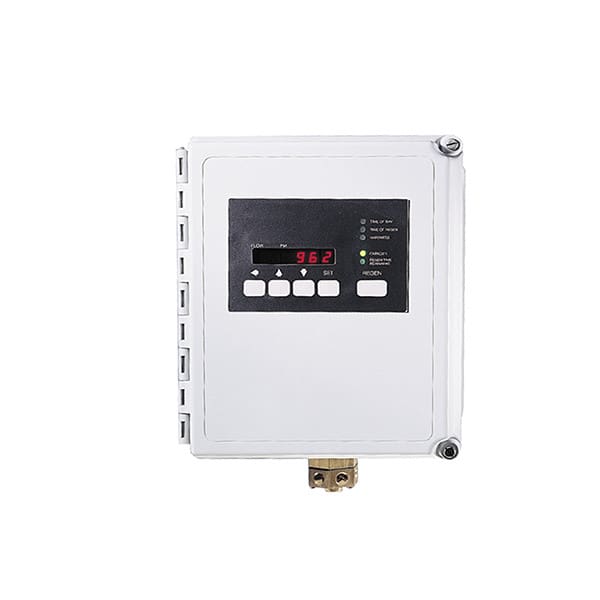

The AqMatic 962 Controller E951-SSF1-10837 (Part #4510837) is a microprocessor-based stager control system designed to manage the sequential operation of diaphragm valves in water treatment and industrial fluid handling systems. Built on the 962 platform and configured for use with a 51 series multi-port stager, this controller provides precise and repeatable control of valve cycling in filtration, softening, and backwash applications.
At the core of the system, the 962 controller monitors system conditions and directs valve sequencing with programmable logic, allowing the stager to pressurize and vent control ports in a defined sequence. This enables coordinated operation across multiple valves and process stages, delivering consistent timing and reliable system performance. The controller can accept input from flow sensors and supports programmable regeneration cycles to match application requirements.
This configuration includes a custom program setup, allowing the controller to be tailored to specific system requirements. Features such as service return (homing) capability automatically synchronize the control and stager to a known position, improving reliability and simplifying maintenance. Housed in a NEMA 4X enclosure and powered by 115VAC, the system is designed for durable operation in demanding environments where moisture and corrosion resistance are required.
$3,672.61
| Model Number | SKU |
|---|---|
| E951-SSF1-10837 | 4510837 |
| Stager | Stager Revision |
| 51 Series 8 Port Stager (Brass) | 48 and 51 Series Stagers |
| Program | |
| SPECIAL PER DRAWING | |
| Enclosure | Electrical |
| NEMA 4X Fiberglass Panel & Enclosure | 115 Volts / 50 or 60 Hertz |
| 1st Aux. Switch | 2nd Aux. Switch |
| Pressure | Relay Output Option |
962 Microprocessor Controller: Provides programmable control over valve sequencing for precise and repeatable system operation.
Designed for 51 Series Multi-Port Stagers: Supports control of more complex multi-valve systems and expanded sequencing requirements.
Sequential Valve Control: Automates valve cycling by directing control pressure to open and close valves in a defined sequence.
Custom Program Configuration: Allows system operation to be tailored to specific application requirements.
Flow Sensor Compatibility: Accepts input from flow sensors to monitor system usage and optimize operation.
Service Return (Homing) Function: Automatically synchronizes control and stager to a known position for consistent operation.
NEMA 4X Enclosure: Protects against moisture, corrosion, and harsh environmental conditions.
115VAC Power Supply (50/60 Hz): Standard electrical configuration for industrial and water treatment systems.
| Weight | 8 lbs |
|---|---|
| Dimensions | 18 × 16 × 10 in |
