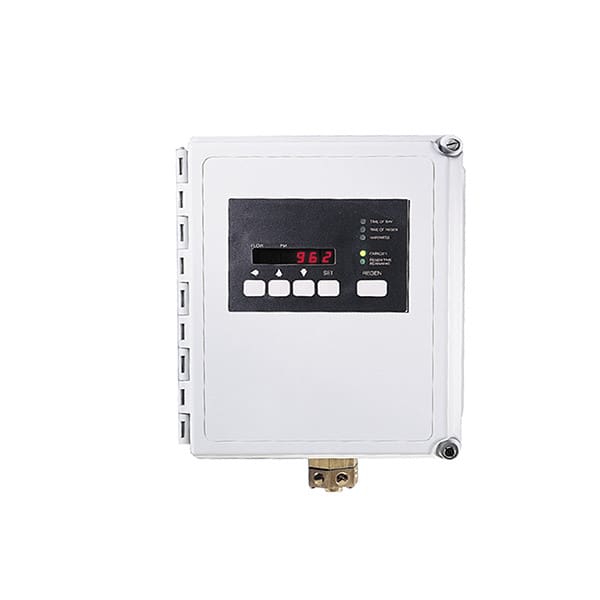

The AqMatic 962-48-12-N4XFG-115V-50H Stager Control System is a fully integrated electronic stager control paired with a 48 series 6-port stager, designed to manage the sequential operation of diaphragm valves in water treatment and industrial fluid handling systems. Housed in a NEMA 4X fiberglass enclosure, this unit is built for reliable performance in demanding environments where moisture, corrosion, and exposure are concerns.
At the core of the system, the 962 electronic controller uses a microprocessor to monitor system conditions and direct valve sequencing with precision. By coordinating the stager’s rotary operation, the system pressurizes and vents control ports to open and close multiple diaphragm valves in a defined sequence. This allows for consistent operation in filtration, softening, and backwash systems where timing and repeatability are critical.
The 48 series 6-port stager provides dependable multi-valve control, while the integrated controller supports programmable cycles, service return (homing) functionality, and compatibility with flow-based or time-based regeneration. Designed for flexibility and long-term operation, the 962-48-12-N4XFG-115V system is commonly used in single and multi-tank systems requiring coordinated valve actuation and reliable system control.
$2,601.89
| Model Number | SKU |
|---|---|
| E948-12F1-SC00B | 4510745 |
| Stager | Stager Revision |
| 48 Series 6 Port Stager (Brass) | 48 and 51 Series Stagers |
| Program | |
| Standard | |
| Enclosure | Electrical |
| NEMA 4X Fiberglass Panel & Enclosure | 115 Volts / 50 or 60 Hertz |
| 1st Aux. Switch | 2nd Aux. Switch |
| Service Return (Homing) | C Cam Position |
| Pressure | Relay Output Option |
| Standard (Vent to Open) | None |
962 Electronic Stager Control: Microprocessor-based controller enables precise sequencing and programmable system operation.
48 Series 6-Port Stager: Controls multiple diaphragm valves through coordinated rotary pilot operation.
Sequential Valve Control: Automates valve cycling by directing control pressure to open and close valves in a defined sequence.
NEMA 4X Fiberglass Enclosure: Provides protection against moisture, corrosion, and harsh environmental conditions.
115V Power Supply (50/60 Hz): Standard electrical configuration for industrial and water treatment applications.
Service Return (Homing) Function: Automatically returns the system to a known position for consistent operation and easier maintenance.
Supports Filtration and Softening Systems: Ideal for multi-tank systems requiring timed or demand-based valve sequencing.
| Weight | 8 lbs |
|---|---|
| Dimensions | 18 × 16 × 10 in |
