V42 G - 2" - Solenoid

AquaMatic / AqMatic Valve V42 G

2″ Y Pattern AquaMatic V42G 426-B Body Diaphragm Valve with Solenoid
Cast Iron or Cast Brass Body and Cap

AquaMatic products are manufactured in the United States of foreign and domestic parts.

AquaMatic V42G Features & Benefits

  • Large seat opening and high lift-disc for higher flow rates at a lower pressure loss
  • Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
  • Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
  • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
  • Constructed of cast iron, brass, stainless steel and Nitrile elastomer components, giving an unparalleled service life
  • ¾-inch through 3-inch threaded (N.P.T. or B.S.P.); 3-inch through 6-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504
  • Compatible with wide range of line fluids including air or water applications
  • Reinforced diaphragms are pre-formed and stress relieved to maximize responsiveness and product life
  • Can be actuated with either air or water as control fluid

V42 Series Solenoid Valves – AquaMatic / AqMatic – Common Configurations
SKU Model Number Diaphragm / Seal&Disc NO SAO SAC LS PI EO EC IP DD Voltage
1072923 V42G-0000-00011 Buna N / Buna N X X 115V/60H
1077303 V42G-0000-00013 Buna N / Buna N X X 24V/60H
1265630 V42G-0000-00014 Buna N / Buna N X X 115V/60H
1263663 V42G-0000-0001A Buna N / Buna N X X 24V DC
1072924 V42G-0000-00021 Buna N / Buna N X X 115V/60H
1080966 V42G-0000-00023 Buna N / Buna N X X 24V/60H

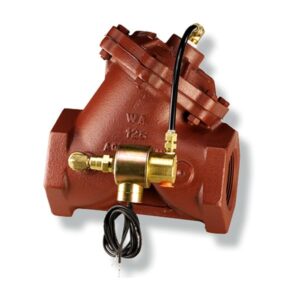

1080967 V42G-0000-00031 Buna N / Buna N X X 115V/60H
1080968 V42G-0000-00041 Buna N / Buna N X X X 115V/60H
4500148 V42G-0000-00054 Buna N / Buna N X X X
3024854 V42G-0000-20011 FKM / FKM X X 115V/60H
4500675 V42G-0001-00011 Buna N / Buna N X X X 115V/60H
1072936 V42G-0002-00011 Buna N / Buna N X X X 115V/60H
1081898 V42G-0010-00011 Buna N / Buna N X X X 115V/60H
4500698 V42G-0010-00013 Buna N / Buna N X X X 24V/60H
1238500 V42G-0010-00521 Buna N / Buna N X X 115V/60H
1072955 V42G-0100-00011 Buna N / Buna N X X 115V/60H
1077317 V42G-0100-00041 Buna N / Buna N X X X 115V/60H
1239977 V42G-0101-00031 Buna N / Buna N X X X 115V/60H
Approximate Ship Weight 20.5 Lbs

Showing all 23 results
